创建单位。




我们已经创建了一副空白地图了，那么现在来创建资源单位吧。

rmCreateObjectDef(string name): Creates an object definition.
rmAddObjectDefItem(int defID, string unitName, int count, float clusterDistance): Add item to object definition.
rmSetObjectDefMinDistance(int defID, float dist): Set the minimum distance for the object definition (in meters).
rmSetObjectDefMaxDistance(int defID, float dist): Set the maximum distance for the object definition (in meters).
rmPlaceObjectDefAtLoc(int defID, int playerID, float xFraction, float zFraction, int placeCount): Place object definition at specific location for given player.
rmAddObjectDefConstraint(int defID, int constraintID): Add specified constraint to given object def.


我知道你是看不懂英文的

int AXXXX = rmCreateObjectDef("XXXXX");创建目标，定义名称，这个名称不能有相同的，否则都会变成单位都会第一个出现的定义单位。
rmAddObjectDefItem(AXXXX, "protoname", 数量, 生成1组的范围【如果为0，即使你设定数量为100都只能放置一个，一般6-12足够使用】);
rmSetObjectDefMinDistance(AXXXX,最小定位可偏移距离，即为中心点位置偏移);
rmSetObjectDefMaxDistance(AXXXX,最大定位可偏移距离，即为中心点位置偏移);
rmPlaceObjectDefAtLoc(AXXXX, 玩家ID, X坐标, Z坐标, 放置数量【与上面的数量不一样，上面的数量是这个的子集,例如上面是2，这里是3，那么总共是6个，2个一组】);
rmAddObjectDefConstraint(AXXXX,已用int定义的规则)



//这个是创建单位的模板：

int Unit1ID = rmCreateObjectDef("Unit1");
rmAddObjectDefItem(Unit1ID, "protoname",1,5.0);
rmSetObjectDefMinDistance(Unit1ID,0.0);
rmSetObjectDefMaxDistance(Unit1ID,30.0);
rmPlaceObjectDefAtLoc(Unit1ID,0,0.50,0.50,1);


//猎物多了个rmSetObjectDefCreateHerd(Hred1ID,true);作用是受到伤害后会跑

int Hred1ID = rmCreateObjectDef("Hred1");
rmAddObjectDefItem(Hred1ID, "protoname",1,5.0);
rmSetObjectDefMinDistance(Hred1ID,0.0);
rmSetObjectDefMaxDistance(Hred1ID,30.0);
rmSetObjectDefCreateHerd(Hred1ID,true);
rmPlaceObjectDefAtLoc(Hred1ID,0,0.50,0.50,1);



下面我要在地图中心给大自然创建一个超级大炮:传送门
  Debug.xs - 记事本 ____ □ X
文件(F)  编辑(E)  格式(O)  查看(V)  帮助(H)

	include "mercenaries.xs";
	include "ypAsianInclude.xs";
	include "ypKOTHInclude.xs";

	void main(void)
	{
		// ---------------------------------------- Map Info -------------------------------------------
		int playerTilesX=13200;			//设定地图X大小
		int playerTilesZ=13200;			//设定地图Z大小（帝国3的Y是高度，Z才是我们平常所用到的Y）


		//如果玩家大于4将playerTilesX与playerTilesZ改为11500（同一个值的int只能出现1次，当你需要修改数值的时候，不能再加入int）
		if (cNumberNonGaiaPlayers >4){	playerTilesX=11500;	playerTilesZ=11500;}



		if (cNumberNonGaiaPlayers >6){	playerTilesX=10500;	playerTilesZ=10500;}		//Modify Map X&Z Size of 6,7,8 Player



		int SizeX = 2*sqrt(cNumberNonGaiaPlayers*playerTilesX);
		int SizeZ = 2*sqrt(cNumberNonGaiaPlayers*playerTilesZ);



		string MapTerrain ="Carolinas\ground_marsh3_car";	//<-------- 地图地形，自己参照剧情编辑器 <--------

		string MapLighting ="319a_Snow";			//<-------- 照明，自己参照剧情编辑器 <--------

		string PlayerTerrain ="Carolinas\ground_marsh1_car";	//<--------- 玩家范围地形 <---------




		//设定地图XZ大小,分别调用上面用int定义的SizeX与SizeZ，即为rmSetMapSize(13200,13200);如果玩家大于4将改为11500
		rmSetMapSize(SizeX, SizeZ);



		rmSetMapElevationParameters(cElevTurbulence, 0.15, 2.5, 0.35, 3.0); // type, frequency, octaves, persistence, variation

		rmSetMapElevationHeightBlend(1.0);


		//地形初始化，设定地图初始地形，调用上面用string定义MapTerrain，即为"Carolinas\ground_marsh3_car";
		rmTerrainInitialize(MapTerrain,6);



		//设定照明，调用上面用string定义MapLighting，即为"319a_Snow"
		rmSetLightingSet(MapLighting);



		rmSetGlobalRain(0.9);		//设定下雨
		chooseMercs();
		rmSetMapType("yucatan");
		rmSetMapType("water");
		rmSetMapType("default");	//设定地图类型，地图类型影响到宝藏
		rmSetMapType("land");
		rmSetMapType("bayou");
		rmSetSeaLevel(0); // this is height of river surface compared to surrounding land. River depth is in the river XML.

		rmSetStatusText("",0.01);//读取地图进度条



		rmPlacePlayersCircular(0.35, 0.35, 0.0);   	//圆形放置玩家


		//玩家范围
		float AreaSizePlayer = rmAreaTilesToFraction(700);
		for(i=1; <=cNumberNonGaiaPlayers)
		{
			int id=rmCreateArea("Player"+i);
			rmSetPlayerArea(i, id);
			rmSetAreaWarnFailure(id, false);
			rmSetAreaSize(id, AreaSizePlayer, AreaSizePlayer);
			rmSetAreaLocPlayer(id, i);
			rmSetAreaCoherence(id, 0.85);
			rmSetAreaSmoothDistance(id, 2);
			rmSetAreaMinBlobs(id, 1);
			rmSetAreaMaxBlobs(id, 1);
			rmSetAreaTerrainType(id,PlayerTerrain);
			rmBuildArea(id);
		}


		//定义城镇中心
		int TownCenterID = rmCreateObjectDef("player TC");
		if (rmGetNomadStart())
		{
			rmAddObjectDefItem(TownCenterID, "CoveredWagon", 1, 0.0);
		}
		else
		{
			rmAddObjectDefItem(TownCenterID, "TownCenter", 1, 0);
		}
		rmSetObjectDefMinDistance(TownCenterID, 0.0);
		rmSetObjectDefMaxDistance(TownCenterID, 20.0);
		for(i=1; <=cNumberNonGaiaPlayers)
		{	//放置城镇中心，rmPlaceObjectDefAtLoc第二个值为被放置玩家对象，这里使用了for循环，循环值=1，<=玩家人数，所以会放置所有玩家的城镇中心。
			rmPlaceObjectDefAtLoc(TownCenterID, i, rmPlayerLocXFraction(i), rmPlayerLocZFraction(i));
		}


		//定义起始单位（civs.xml定义那些开局单位）
		int startingUnits = rmCreateStartingUnitsObjectDef(5.0);
		rmSetObjectDefMinDistance(startingUnits, 6.0);
		rmSetObjectDefMaxDistance(startingUnits, 10.0);

		for(i=1; <=cNumberNonGaiaPlayers)
		{
			//我暂时只能告诉你这个是调用城镇中心坐标，不解释太多，解释太多你听不懂。另外留意下for(i=1;<=xx){}，这是是c++的一种循环格式。
			vector TCLocation = rmGetUnitPosition(rmGetUnitPlacedOfPlayer(TownCenterID, i));

			//放置起始单位
			rmPlaceObjectDefAtLoc(startingUnits, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));
		}


		int FixedGunID = rmCreateObjectDef("FixedGun");
		rmAddObjectDefItem(FixedGunID, "SPCFixedGun",1,5.0);
		rmSetObjectDefMinDistance(FixedGunID,0.0);
		rmSetObjectDefMaxDistance(FixedGunID,30.0);
		rmPlaceObjectDefAtLoc(FixedGunID,0,0.50,0.50,1);
		//rmPlaceObjectDefAtLoc(FixedGunID,玩家ID等于大自然,（0.5,0.5就是地图中心）,1组);放心复制吧，颜色不会影响到复制
		//你留意到橙色与绿色字体了吗?橙色是创建目标定义的名称，不能出现重复，绿色是单位调用名必须加英文双引号""




		rmSetStatusText("",0.50);//读取地图进度条





		rmSetStatusText("",1.00);//读取地图进度条


					//愿神兽会保佑你不会出错。
 			/*----------------------------------------------------------------------------------------------*
			* 　　　┏┓　　　┏┓										*
			* 　　┏┛┻━━━┛┻┓									*
			* 　　┃　　　　　　　┃									*
			* 　　┃　　　━　　　┃									*
			* 　　┃　┳┛　┗┳　┃									*
			* 　　┃　　　　　　　┃									*
			* 　　┃　　　┻　　　┃									*
			* 　　┃　　　　　　　┃									*
			* 　　┗━┓　　　┏━┛     Code is far away from bug with the animal protecting		*
			* 　　　　┃　　　┃    									*
			* 　　　　┃　　　┃										*
			* 　　　　┃　　　┃										*
			* 　　　　┃　　　┃										*
			* 　　　　┃　　　┃										*
			* 　　　　┃　　　┗━━━┓									*
			* 　　　　┃　　　　　　　┣┓									*
			* 　　　　┃　　　　　　　┏┛									*
			* 　　　　┗┓┓┏━┳┓┏┛									*
			* 　　　　　┃┫┫　┃┫┫									*
			* 　　　　　┗┻┛　┗┻┛									*
			*----------------------------------------------------------------------------------------------*/
	} //END

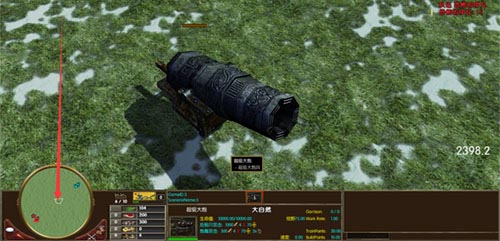

创建一个超级大炮已经成功了，下面来创建玩家附近资源。
我给每个玩家创建了10只大象，传送门
  Debug.xs - 记事本 ____ □ X
文件(F)  编辑(E)  格式(O)  查看(V)  帮助(H)

	include "mercenaries.xs";
	include "ypAsianInclude.xs";
	include "ypKOTHInclude.xs";

	void main(void)
	{
		// ---------------------------------------- Map Info -------------------------------------------
		int playerTilesX=13200;			//设定地图X大小
		int playerTilesZ=13200;			//设定地图Z大小（帝国3的Y是高度，Z才是我们平常所用到的Y）


		//如果玩家大于4将playerTilesX与playerTilesZ改为11500（同一个值的int只能出现1次，当你需要修改数值的时候，不能再加入int）
		if (cNumberNonGaiaPlayers >4){	playerTilesX=11500;	playerTilesZ=11500;}



		if (cNumberNonGaiaPlayers >6){	playerTilesX=10500;	playerTilesZ=10500;}		//Modify Map X&Z Size of 6,7,8 Player



		int SizeX = 2*sqrt(cNumberNonGaiaPlayers*playerTilesX);
		int SizeZ = 2*sqrt(cNumberNonGaiaPlayers*playerTilesZ);



		string MapTerrain ="Carolinas\ground_marsh3_car";	//<-------- 地图地形，自己参照剧情编辑器 <--------

		string MapLighting ="319a_Snow";			//<-------- 照明，自己参照剧情编辑器 <--------

		string PlayerTerrain ="Carolinas\ground_marsh1_car";	//<--------- 玩家范围地形 <---------




		//设定地图XZ大小,分别调用上面用int定义的SizeX与SizeZ，即为rmSetMapSize(13200,13200);如果玩家大于4将改为11500
		rmSetMapSize(SizeX, SizeZ);



		rmSetMapElevationParameters(cElevTurbulence, 0.15, 2.5, 0.35, 3.0); // type, frequency, octaves, persistence, variation

		rmSetMapElevationHeightBlend(1.0);


		//地形初始化，设定地图初始地形，调用上面用string定义MapTerrain，即为"Carolinas\ground_marsh3_car";
		rmTerrainInitialize(MapTerrain,6);



		//设定照明，调用上面用string定义MapLighting，即为"319a_Snow"
		rmSetLightingSet(MapLighting);



		rmSetGlobalRain(0.9);		//设定下雨
		chooseMercs();
		rmSetMapType("yucatan");
		rmSetMapType("water");
		rmSetMapType("default");	//设定地图类型，地图类型影响到宝藏
		rmSetMapType("land");
		rmSetMapType("bayou");
		rmSetSeaLevel(0); // this is height of river surface compared to surrounding land. River depth is in the river XML.

		rmSetStatusText("",0.01);//读取地图进度条



		rmPlacePlayersCircular(0.35, 0.35, 0.0);   	//圆形放置玩家


		//玩家范围
		float AreaSizePlayer = rmAreaTilesToFraction(700);
		for(i=1; <=cNumberNonGaiaPlayers)
		{
			int id=rmCreateArea("Player"+i);
			rmSetPlayerArea(i, id);
			rmSetAreaWarnFailure(id, false);
			rmSetAreaSize(id, AreaSizePlayer, AreaSizePlayer);
			rmSetAreaLocPlayer(id, i);
			rmSetAreaCoherence(id, 0.85);
			rmSetAreaSmoothDistance(id, 2);
			rmSetAreaMinBlobs(id, 1);
			rmSetAreaMaxBlobs(id, 1);
			rmSetAreaTerrainType(id,PlayerTerrain);
			rmBuildArea(id);
		}

		//定义城镇中心
		int TownCenterID = rmCreateObjectDef("player TC");
		if (rmGetNomadStart())
		{
			rmAddObjectDefItem(TownCenterID, "CoveredWagon", 1, 0.0);
		}
		else
		{
			rmAddObjectDefItem(TownCenterID, "TownCenter", 1, 0);
		}
		rmSetObjectDefMinDistance(TownCenterID, 0.0);
		rmSetObjectDefMaxDistance(TownCenterID, 20.0);
		for(i=1; <=cNumberNonGaiaPlayers)
		{	//放置城镇中心，rmPlaceObjectDefAtLoc第二个值为被放置玩家对象，这里使用了for循环，循环值=1，<=玩家人数，所以会放置所有玩家的城镇中心。
			rmPlaceObjectDefAtLoc(TownCenterID, i, rmPlayerLocXFraction(i), rmPlayerLocZFraction(i));
		}


		//定义起始单位（civs.xml定义那些开局单位）
		int startingUnits = rmCreateStartingUnitsObjectDef(5.0);
		rmSetObjectDefMinDistance(startingUnits, 6.0);
		rmSetObjectDefMaxDistance(startingUnits, 10.0);


		int playerherdID = rmCreateObjectDef("starting herd");
		rmAddObjectDefItem(playerherdID, "ypWildElephant", 10, 6.0);
		rmSetObjectDefMinDistance(playerherdID, 8.0);
		rmSetObjectDefMaxDistance(playerherdID, 12.0);
		rmSetObjectDefCreateHerd(playerherdID, true);

		for(i=1; <=cNumberNonGaiaPlayers)
		{
			//我暂时只能告诉你这个是调用城镇中心坐标，不解释太多，解释太多你听不懂。另外留意下for(i=1;<=xx){}，这是是c++的一种循环格式。
			vector TCLocation = rmGetUnitPosition(rmGetUnitPlacedOfPlayer(TownCenterID, i));

			//放置起始单位
			rmPlaceObjectDefAtLoc(startingUnits, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));
			rmPlaceObjectDefAtLoc(playerherdID, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));
		}
		//你可能看不懂for(i)下面的vector TCLocation；我现在可以告诉你这是获取地图上已有单位的X、Y、Z坐标，格式是(X,Y,Z)；然后xsVectorGetX(TCLocation)将TCLocation的(X,Y,Z)坐标变成单个X坐标，同理xsVectorGetZ(TCLocation)转变成Z坐标；然后rmXMetersToFraction又把转变后的坐标转换成地图坐标（0.5,0.5那种）。至于那个i，就是c++中for循环的变量了：for(i=1; <=cNumberNonGaiaPlayers)，循环值等于1，<=不计算大自然玩家的总玩家数，假设不计算大自然后的玩家人数等于3，第一次执行的i值为1，第二次循环又会执行相同的语句，此时i值变成1+1；第三次循i值变成1+1+1，所以就给3个玩家都创建了单位。

		int FixedGunID = rmCreateObjectDef("FixedGun");
		rmAddObjectDefItem(FixedGunID, "SPCFixedGun",1,5.0);
		rmSetObjectDefMinDistance(FixedGunID,0.0);
		rmSetObjectDefMaxDistance(FixedGunID,30.0);
		rmPlaceObjectDefAtLoc(FixedGunID,0,0.50,0.50,1);
		//rmPlaceObjectDefAtLoc(FixedGunID,玩家ID等于大自然,（0.5,0.5就是地图中心）,1组);放心复制吧，颜色不会影响到复制





		rmSetStatusText("",0.50);//读取地图进度条





		rmSetStatusText("",1.00);//读取地图进度条


					//愿神兽会保佑你不会出错。
 			/*----------------------------------------------------------------------------------------------*
			* 　　　┏┓　　　┏┓										*
			* 　　┏┛┻━━━┛┻┓									*
			* 　　┃　　　　　　　┃									*
			* 　　┃　　　━　　　┃									*
			* 　　┃　┳┛　┗┳　┃									*
			* 　　┃　　　　　　　┃									*
			* 　　┃　　　┻　　　┃									*
			* 　　┃　　　　　　　┃									*
			* 　　┗━┓　　　┏━┛     Code is far away from bug with the animal protecting		*
			* 　　　　┃　　　┃    									*
			* 　　　　┃　　　┃										*
			* 　　　　┃　　　┃										*
			* 　　　　┃　　　┃										*
			* 　　　　┃　　　┃										*
			* 　　　　┃　　　┗━━━┓									*
			* 　　　　┃　　　　　　　┣┓									*
			* 　　　　┃　　　　　　　┏┛									*
			* 　　　　┗┓┓┏━┳┓┏┛									*
			* 　　　　　┃┫┫　┃┫┫									*
			* 　　　　　┗┻┛　┗┻┛									*
			*----------------------------------------------------------------------------------------------*/
	} //END

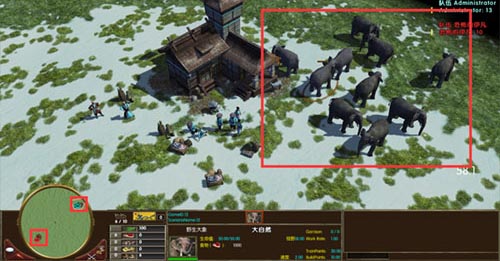

给创建每个玩家创建10只大象已经成功，那么其他资源你可以自己完成了吧？传送门


  Debug.xs - 记事本 ____ □ X
文件(F)  编辑(E)  格式(O)  查看(V)  帮助(H)

	include "mercenaries.xs";
	include "ypAsianInclude.xs";
	include "ypKOTHInclude.xs";

	void main(void)
	{
		// ---------------------------------------- Map Info -------------------------------------------
		int playerTilesX=13200;			//设定地图X大小
		int playerTilesZ=13200;			//设定地图Z大小（帝国3的Y是高度，Z才是我们平常所用到的Y）


		//如果玩家大于4将playerTilesX与playerTilesZ改为11500（同一个值的int只能出现1次，当你需要修改数值的时候，不能再加入int）
		if (cNumberNonGaiaPlayers >4){	playerTilesX=11500;	playerTilesZ=11500;}



		if (cNumberNonGaiaPlayers >6){	playerTilesX=10500;	playerTilesZ=10500;}		//Modify Map X&Z Size of 6,7,8 Player



		int SizeX = 2*sqrt(cNumberNonGaiaPlayers*playerTilesX);
		int SizeZ = 2*sqrt(cNumberNonGaiaPlayers*playerTilesZ);



		string MapTerrain ="Carolinas\ground_marsh3_car";	//<-------- 地图地形，自己参照剧情编辑器 <--------

		string MapLighting ="319a_Snow";			//<-------- 照明，自己参照剧情编辑器 <--------

		string PlayerTerrain ="Carolinas\ground_marsh1_car";	//<--------- 玩家范围地形 <---------




		//设定地图XZ大小,分别调用上面用int定义的SizeX与SizeZ，即为rmSetMapSize(13200,13200);如果玩家大于4将改为11500
		rmSetMapSize(SizeX, SizeZ);



		rmSetMapElevationParameters(cElevTurbulence, 0.15, 2.5, 0.35, 3.0); // type, frequency, octaves, persistence, variation

		rmSetMapElevationHeightBlend(1.0);


		//地形初始化，设定地图初始地形，调用上面用string定义MapTerrain，即为"Carolinas\ground_marsh3_car";
		rmTerrainInitialize(MapTerrain,6);



		//设定照明，调用上面用string定义MapLighting，即为"319a_Snow"
		rmSetLightingSet(MapLighting);



		rmSetGlobalRain(0.9);		//设定下雨
		chooseMercs();
		rmSetMapType("yucatan");
		rmSetMapType("water");
		rmSetMapType("default");	//设定地图类型，地图类型影响到宝藏
		rmSetMapType("land");
		rmSetMapType("bayou");
		rmSetSeaLevel(0); // this is height of river surface compared to surrounding land. River depth is in the river XML.

		rmSetStatusText("",0.01);//读取地图进度条



		rmPlacePlayersCircular(0.35, 0.35, 0.0);   	//圆形放置玩家


		//玩家范围
		float AreaSizePlayer = rmAreaTilesToFraction(700);
		for(i=1; <=cNumberNonGaiaPlayers)
		{
			int id=rmCreateArea("Player"+i);
			rmSetPlayerArea(i, id);
			rmSetAreaWarnFailure(id, false);
			rmSetAreaSize(id, AreaSizePlayer, AreaSizePlayer);
			rmSetAreaLocPlayer(id, i);
			rmSetAreaCoherence(id, 0.85);
			rmSetAreaSmoothDistance(id, 2);
			rmSetAreaMinBlobs(id, 1);
			rmSetAreaMaxBlobs(id, 1);
			rmSetAreaTerrainType(id,PlayerTerrain);
			rmBuildArea(id);
		}

		//定义城镇中心
		int TownCenterID = rmCreateObjectDef("player TC");
		if (rmGetNomadStart())
		{
			rmAddObjectDefItem(TownCenterID, "CoveredWagon", 1, 0.0);
		}
		else
		{
			rmAddObjectDefItem(TownCenterID, "TownCenter", 1, 0);
		}
		rmSetObjectDefMinDistance(TownCenterID, 0.0);
		rmSetObjectDefMaxDistance(TownCenterID, 20.0);
		for(i=1; <=cNumberNonGaiaPlayers)
		{	//放置城镇中心，rmPlaceObjectDefAtLoc第二个值为被放置玩家对象，这里使用了for循环，循环值=1，<=玩家人数，所以会放置所有玩家的城镇中心。
			rmPlaceObjectDefAtLoc(TownCenterID, i, rmPlayerLocXFraction(i), rmPlayerLocZFraction(i));
		}


		//定义起始单位（civs.xml定义那些开局单位）
		int startingUnits = rmCreateStartingUnitsObjectDef(5.0);
		rmSetObjectDefMinDistance(startingUnits, 6.0);
		rmSetObjectDefMaxDistance(startingUnits, 10.0);

		int playerherdID = rmCreateObjectDef("starting herd");
		rmAddObjectDefItem(playerherdID, "ypWildElephant", 10, 6.0);
		rmSetObjectDefMinDistance(playerherdID, 8.0);
		rmSetObjectDefMaxDistance(playerherdID, 12.0);
		rmSetObjectDefCreateHerd(playerherdID, true);



		int playergoldID = rmCreateObjectDef("player mine");
		rmAddObjectDefItem(playergoldID, "Minegold", 1, 6);
		rmSetObjectDefMinDistance(playergoldID, 18.0);
		rmSetObjectDefMaxDistance(playergoldID, 22.0);

		string PlayerTreeType ="TreeRedwood";
		int PlayerTreeCount = 8;

		int playerTree1ID = rmCreateObjectDef("player trees");
		rmAddObjectDefItem(playerTree1ID, PlayerTreeType, PlayerTreeCount, 8.0);
		rmSetObjectDefMinDistance(playerTree1ID, 6);
		rmSetObjectDefMaxDistance(playerTree1ID, 12);

		//不是说绿色字体的单位调用名必须加英文双引号吗，为什么上面的PlayerTreeType没有双引号？因为我在前面用string定义了PlayerTreeType ="TreeRedwood";，所以PlayerTreeType会转变成"TreeRedwood"。（PS:带双引号的必须用string定义，不能用int。）
		//另外你看见PlayerTreeCount没？那里原本是单位数量，被我改成了PlayerTreeCount，像上面PlayerTreeType一样；需要先用int定义（因为没有双引号所以用int），然后PlayerTreeCount会转变成定义的数值8，所以就是开局8棵树了。



		int playerBerryID=rmCreateObjectDef("player berries");
		rmAddObjectDefItem(playerBerryID, "BerryBush", rmRandInt(3,4), 3.0);
		rmSetObjectDefMinDistance(playerBerryID, 12);
		rmSetObjectDefMaxDistance(playerBerryID, 14);
		//看见rmRandInt(3,4)了吗，这是随机数，rmRandInt会随机返回两个数值中的一个数值。也就是说会随机出现3个浆果丛或4个浆果丛。



		for(i=1; <=cNumberNonGaiaPlayers)
		{
			vector TCLocation = rmGetUnitPosition(rmGetUnitPlacedOfPlayer(TownCenterID, i));
			rmPlaceObjectDefAtLoc(startingUnits, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));
			rmPlaceObjectDefAtLoc(playerherdID, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));
			rmPlaceObjectDefAtLoc(playerTree1ID, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));
			rmPlaceObjectDefAtLoc(playergoldID, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));
			rmPlaceObjectDefAtLoc(playerBerryID, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));
		}

		int FixedGunID = rmCreateObjectDef("FixedGun");
		rmAddObjectDefItem(FixedGunID, "SPCFixedGun",1,5.0);
		rmSetObjectDefMinDistance(FixedGunID,0.0);
		rmSetObjectDefMaxDistance(FixedGunID,30.0);
		rmPlaceObjectDefAtLoc(FixedGunID,0,0.50,0.50,1);
		//rmPlaceObjectDefAtLoc(FixedGunID,玩家ID等于大自然,（0.5,0.5就是地图中心）,1组);放心复制吧，颜色不会影响到复制




		rmSetStatusText("",0.50);//读取地图进度条





		rmSetStatusText("",1.00);//读取地图进度条


					//愿神兽会保佑你不会出错。
 			/*----------------------------------------------------------------------------------------------*
			* 　　　┏┓　　　┏┓										*
			* 　　┏┛┻━━━┛┻┓									*
			* 　　┃　　　　　　　┃									*
			* 　　┃　　　━　　　┃									*
			* 　　┃　┳┛　┗┳　┃									*
			* 　　┃　　　　　　　┃									*
			* 　　┃　　　┻　　　┃									*
			* 　　┃　　　　　　　┃									*
			* 　　┗━┓　　　┏━┛     Code is far away from bug with the animal protecting		*
			* 　　　　┃　　　┃    									*
			* 　　　　┃　　　┃										*
			* 　　　　┃　　　┃										*
			* 　　　　┃　　　┃										*
			* 　　　　┃　　　┃										*
			* 　　　　┃　　　┗━━━┓									*
			* 　　　　┃　　　　　　　┣┓									*
			* 　　　　┃　　　　　　　┏┛									*
			* 　　　　┗┓┓┏━┳┓┏┛									*
			* 　　　　　┃┫┫　┃┫┫									*
			* 　　　　　┗┻┛　┗┻┛									*
			*----------------------------------------------------------------------------------------------*/
	} //END

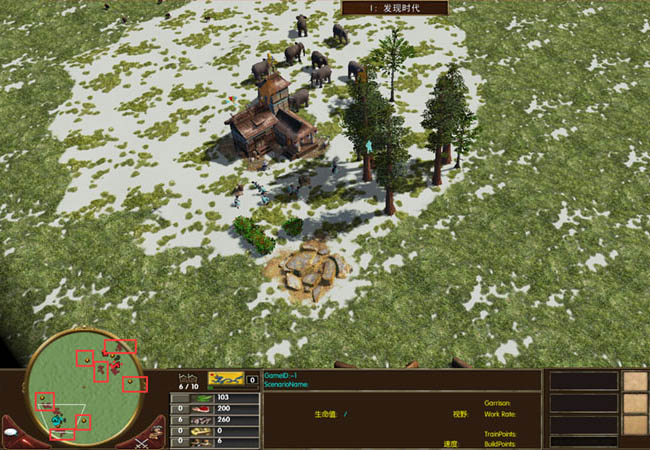

你知道为什么ESOC地图的开局资源分布比官方制作的地图要平衡吗？因为官方地图设定的是中心点利用规则自动计算并且放置，而ESOC地图设定了两个矿场、两个肉群都是跟随城镇中心一起放置的（像上面的教程一样）。只不过最小放置距离设置得有点大，所以看不出来是跟随城镇中心放置的。传送门


  Debug.xs - 记事本 ____ □ X
文件(F)  编辑(E)  格式(O)  查看(V)  帮助(H)

	include "mercenaries.xs";
	include "ypAsianInclude.xs";
	include "ypKOTHInclude.xs";

	void main(void)
	{
		// ---------------------------------------- Map Info -------------------------------------------
		int playerTilesX=13200;			//设定地图X大小
		int playerTilesZ=13200;			//设定地图Z大小（帝国3的Y是高度，Z才是我们平常所用到的Y）


		//如果玩家大于4将playerTilesX与playerTilesZ改为11500（同一个值的int只能出现1次，当你需要修改数值的时候，不能再加入int）
		if (cNumberNonGaiaPlayers >4){	playerTilesX=11500;	playerTilesZ=11500;}



		if (cNumberNonGaiaPlayers >6){	playerTilesX=10500;	playerTilesZ=10500;}		//Modify Map X&Z Size of 6,7,8 Player



		int SizeX = 2*sqrt(cNumberNonGaiaPlayers*playerTilesX);
		int SizeZ = 2*sqrt(cNumberNonGaiaPlayers*playerTilesZ);



		string MapTerrain ="Carolinas\ground_marsh3_car";	//<-------- 地图地形，自己参照剧情编辑器 <--------

		string MapLighting ="319a_Snow";			//<-------- 照明，自己参照剧情编辑器 <--------

		string PlayerTerrain ="Carolinas\ground_marsh1_car";	//<--------- 玩家范围地形 <---------




		//设定地图XZ大小,分别调用上面用int定义的SizeX与SizeZ，即为rmSetMapSize(13200,13200);如果玩家大于4将改为11500
		rmSetMapSize(SizeX, SizeZ);



		rmSetMapElevationParameters(cElevTurbulence, 0.15, 2.5, 0.35, 3.0); // type, frequency, octaves, persistence, variation

		rmSetMapElevationHeightBlend(1.0);


		//地形初始化，设定地图初始地形，调用上面用string定义MapTerrain，即为"Carolinas\ground_marsh3_car";
		rmTerrainInitialize(MapTerrain,6);



		//设定照明，调用上面用string定义MapLighting，即为"319a_Snow"
		rmSetLightingSet(MapLighting);



		rmSetGlobalRain(0.9);		//设定下雨
		chooseMercs();
		rmSetMapType("yucatan");
		rmSetMapType("water");
		rmSetMapType("default");	//设定地图类型，地图类型影响到宝藏
		rmSetMapType("land");
		rmSetMapType("bayou");
		rmSetSeaLevel(0); // this is height of river surface compared to surrounding land. River depth is in the river XML.

		rmSetStatusText("",0.01);//读取地图进度条



		rmPlacePlayersCircular(0.35, 0.35, 0.0);   	//圆形放置玩家


		//玩家范围
		float AreaSizePlayer = rmAreaTilesToFraction(700);
		for(i=1; <=cNumberNonGaiaPlayers)
		{
			int id=rmCreateArea("Player"+i);
			rmSetPlayerArea(i, id);
			rmSetAreaWarnFailure(id, false);
			rmSetAreaSize(id, AreaSizePlayer, AreaSizePlayer);
			rmSetAreaLocPlayer(id, i);
			rmSetAreaCoherence(id, 0.85);
			rmSetAreaSmoothDistance(id, 2);
			rmSetAreaMinBlobs(id, 1);
			rmSetAreaMaxBlobs(id, 1);
			rmSetAreaTerrainType(id,PlayerTerrain);
			rmBuildArea(id);
		}

		//定义城镇中心
		int TownCenterID = rmCreateObjectDef("player TC");
		if (rmGetNomadStart())
		{
			rmAddObjectDefItem(TownCenterID, "CoveredWagon", 1, 0.0);
		}
		else
		{
			rmAddObjectDefItem(TownCenterID, "TownCenter", 1, 0);
		}
		rmSetObjectDefMinDistance(TownCenterID, 0.0);
		rmSetObjectDefMaxDistance(TownCenterID, 20.0);
		for(i=1; <=cNumberNonGaiaPlayers)
		{
			rmPlaceObjectDefAtLoc(TownCenterID, i, rmPlayerLocXFraction(i), rmPlayerLocZFraction(i));
		}


		//定义起始单位（civs.xml定义那些开局单位）
		int startingUnits = rmCreateStartingUnitsObjectDef(5.0);
		rmSetObjectDefMinDistance(startingUnits, 6.0);
		rmSetObjectDefMaxDistance(startingUnits, 10.0);

		int playerherdID = rmCreateObjectDef("starting herd");
		rmAddObjectDefItem(playerherdID, "ypWildElephant", 10, 6.0);
		rmSetObjectDefMinDistance(playerherdID, 8.0);
		rmSetObjectDefMaxDistance(playerherdID, 12.0);
		rmSetObjectDefCreateHerd(playerherdID, true);

		int playergoldID = rmCreateObjectDef("player mine");
		rmAddObjectDefItem(playergoldID, "Minegold", 1, 6);
		rmSetObjectDefMinDistance(playergoldID, 18.0);
		rmSetObjectDefMaxDistance(playergoldID, 22.0);

		string PlayerTreeType ="TreeRedwood";
		int PlayerTreeCount = 8;

		int playerTree1ID = rmCreateObjectDef("player trees");
		rmAddObjectDefItem(playerTree1ID, PlayerTreeType, PlayerTreeCount, 8.0);
		rmSetObjectDefMinDistance(playerTree1ID, 6);
		rmSetObjectDefMaxDistance(playerTree1ID, 12);





		int playerBerryID=rmCreateObjectDef("player berries");
		rmAddObjectDefItem(playerBerryID, "BerryBush", rmRandInt(3,4), 3.0);
		rmSetObjectDefMinDistance(playerBerryID, 12);
		rmSetObjectDefMaxDistance(playerBerryID, 14);





		int playerHerd2ID = rmCreateObjectDef("player Herd2");
		rmAddObjectDefItem(playerHerd2ID, "Bison", rmRandInt(10,11), 10.0);
		rmSetObjectDefMinDistance(playerHerd2ID, 36);
		rmSetObjectDefMaxDistance(playerHerd2ID, 38);
		rmSetObjectDefCreateHerd(playerHerd2ID, true);




		int playerHerd3ID = rmCreateObjectDef("player Herd3");
		rmAddObjectDefItem(playerHerd3ID, "Turkey", rmRandInt(8,9), 8.0);
		rmSetObjectDefMinDistance(playerHerd3ID, 40);
		rmSetObjectDefMaxDistance(playerHerd3ID, 42);
		rmSetObjectDefCreateHerd(playerHerd3ID, true);



		int playergold2ID = rmCreateObjectDef("player second mine");
		rmAddObjectDefItem(playergold2ID, "mine", 1, 0);
		rmSetObjectDefMinDistance(playergold2ID, 58.0);
		rmSetObjectDefMaxDistance(playergold2ID, 62.0);



		int playergold3ID = rmCreateObjectDef("player third mine");
		rmAddObjectDefItem(playergold3ID, "mine", 1, 0);
		rmSetObjectDefMinDistance(playergold3ID, 68.0);
		rmSetObjectDefMaxDistance(playergold3ID, 70.0);

		for(i=1; <=cNumberNonGaiaPlayers)
		{
			vector TCLocation = rmGetUnitPosition(rmGetUnitPlacedOfPlayer(TownCenterID, i));
			rmPlaceObjectDefAtLoc(startingUnits, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));
			rmPlaceObjectDefAtLoc(playerherdID, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));
			rmPlaceObjectDefAtLoc(playerTree1ID, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));
			rmPlaceObjectDefAtLoc(playergoldID, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));
			rmPlaceObjectDefAtLoc(playerBerryID, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));

			rmPlaceObjectDefAtLoc(playerHerd2ID, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));
			rmPlaceObjectDefAtLoc(playerHerd3ID, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));
			rmPlaceObjectDefAtLoc(playergold2ID, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));
			rmPlaceObjectDefAtLoc(playergold3ID, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));

		}

		int FixedGunID = rmCreateObjectDef("FixedGun");
		rmAddObjectDefItem(FixedGunID, "SPCFixedGun",1,5.0);
		rmSetObjectDefMinDistance(FixedGunID,0.0);
		rmSetObjectDefMaxDistance(FixedGunID,30.0);
		rmPlaceObjectDefAtLoc(FixedGunID,0,0.50,0.50,1);
		//rmPlaceObjectDefAtLoc(FixedGunID,玩家ID等于大自然,（0.5,0.5就是地图中心）,1组);放心复制吧，颜色不会影响到复制




		rmSetStatusText("",0.50);//读取地图进度条





		rmSetStatusText("",1.00);//读取地图进度条


					//愿神兽会保佑你不会出错。
 			/*----------------------------------------------------------------------------------------------*
			* 　　　┏┓　　　┏┓										*
			* 　　┏┛┻━━━┛┻┓									*
			* 　　┃　　　　　　　┃									*
			* 　　┃　　　━　　　┃									*
			* 　　┃　┳┛　┗┳　┃									*
			* 　　┃　　　　　　　┃									*
			* 　　┃　　　┻　　　┃									*
			* 　　┃　　　　　　　┃									*
			* 　　┗━┓　　　┏━┛     Code is far away from bug with the animal protecting		*
			* 　　　　┃　　　┃    									*
			* 　　　　┃　　　┃										*
			* 　　　　┃　　　┃										*
			* 　　　　┃　　　┃										*
			* 　　　　┃　　　┃										*
			* 　　　　┃　　　┗━━━┓									*
			* 　　　　┃　　　　　　　┣┓									*
			* 　　　　┃　　　　　　　┏┛									*
			* 　　　　┗┓┓┏━┳┓┏┛									*
			* 　　　　　┃┫┫　┃┫┫									*
			* 　　　　　┗┻┛　┗┻┛									*
			*----------------------------------------------------------------------------------------------*/
	} //END

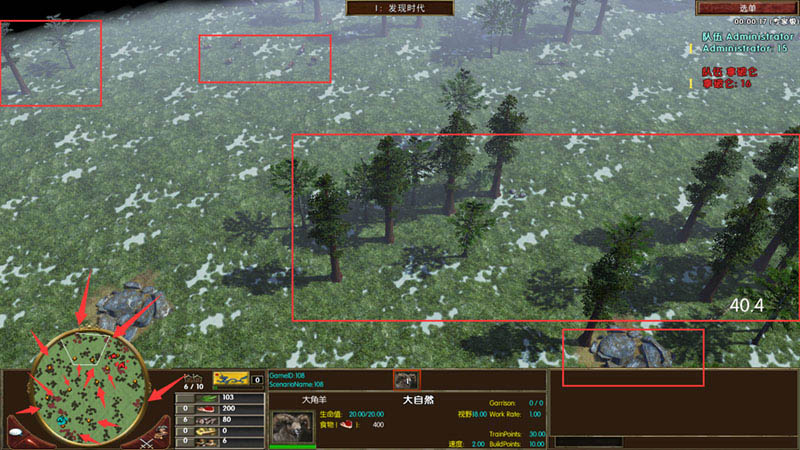

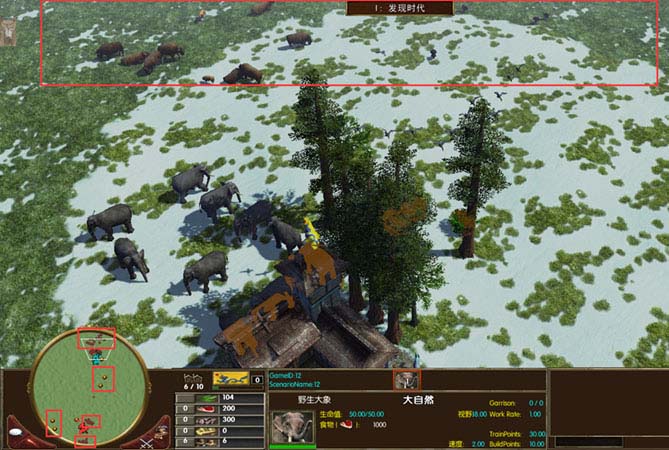

这效果是不是有点差了？不是有点差，完全就是不及格。两个银矿、肉群都放在一起了。那么应该如何分开这些资源呢？这时候就要使用放置限制了（也可以叫放置规则），语句为rmAddObjectDefConstraint(int defID, int constraintID): Add specified constraint to given object def.。


只要出现命令表的(英文)内容你就头疼了吧？





首先，先用int 定义“限制”，可使用的限制语句如下：


-----------------------------------------------------------------------------------------------------------------------------
创建与某areaID最小间隔距离限制：
[(int   )] rmCreateAreaDistanceConstraint(string name, int areaID, float distance): Make an area distance constraint.

创建与某areaID最大间隔距离限制：
[(int   )] rmCreateAreaMaxDistanceConstraint(string name, int areaID, float distance): Make an area max distance constraint.

areaID就是用int定义的TownCenterID、playerherdID、playerTree1ID，不用管命令表的areaID、defID、riverID，只要是绘制地形、创建河流、放置单位、放置群组，全部都属于areaID，又或者说都可以用于rmCreateAreaDistanceConstraint与rmCreateAreaMaxDistanceConstraint
-----------------------------------------------------------------------------------------------------------------------------

创建正方形限制
[(int   )] rmCreateBoxConstraint(string name, float startX, float startZ, float endX, float endZ, float bufferFraction): Make a box constraint.


-----------------------------------------------------------------------------------------------------------------------------
创建与某class最小间隔距离限制
[(int   )] rmCreateClassDistanceConstraint(string name, int classID, float distance): Make a class distance constraint.

需要先用rmDefineClass("xxx")定义class，然后用语句将class加入到areaID、defID、riverID里面。
-----------------------------------------------------------------------------------------------------------------------------

创建与某个Unittype最小间隔距离限制(注：命令表可能有错，命令表写的是int classID，实际上是使用string Unittype)
rmCreateTypeDistanceConstraint(string name, string Unittype, float distance): Make a type distance constraint.

创建与某贸易路线最小间隔距离限制
rmCreateTradeRouteDistanceConstraint(string name, float minDistance): Make a constraint to avoid trade routes.

我就列举这几个限制，其实还有很多，自己去RM命令表查找


上面说了那么多，下面来创建限制吧。





你知道为什么ESOC地图的开局资源分布比官方制作的地图要平衡吗？因为官方地图设定的是中心点利用规则自动计算并且放置，而ESOC地图设定了两个矿场、两个肉群都是跟随城镇中心一起放置的（像上面的教程一样）。只不过最小放置距离设置得有点大，所以看不出来是跟随城镇中心放置的。
定义Class传送门     添加Class与放置限制到单位传送门


  Debug.xs - 记事本 ____ □ X
文件(F)  编辑(E)  格式(O)  查看(V)  帮助(H)

	include "mercenaries.xs";
	include "ypAsianInclude.xs";
	include "ypKOTHInclude.xs";

	void main(void)
	{
		// ---------------------------------------- Map Info -------------------------------------------
		int playerTilesX=13200;			//设定地图X大小
		int playerTilesZ=13200;			//设定地图Z大小（帝国3的Y是高度，Z才是我们平常所用到的Y）


		//如果玩家大于4将playerTilesX与playerTilesZ改为11500（同一个值的int只能出现1次，当你需要修改数值的时候，不能再加入int）
		if (cNumberNonGaiaPlayers >4){	playerTilesX=11500;	playerTilesZ=11500;}



		if (cNumberNonGaiaPlayers >6){	playerTilesX=10500;	playerTilesZ=10500;}		//Modify Map X&Z Size of 6,7,8 Player



		int SizeX = 2*sqrt(cNumberNonGaiaPlayers*playerTilesX);
		int SizeZ = 2*sqrt(cNumberNonGaiaPlayers*playerTilesZ);



		string MapTerrain ="Carolinas\ground_marsh3_car";	//<-------- 地图地形，自己参照剧情编辑器 <--------

		string MapLighting ="319a_Snow";			//<-------- 照明，自己参照剧情编辑器 <--------

		string PlayerTerrain ="Carolinas\ground_marsh1_car";	//<--------- 玩家范围地形 <---------




		//设定地图XZ大小,分别调用上面用int定义的SizeX与SizeZ，即为rmSetMapSize(13200,13200);如果玩家大于4将改为11500
		rmSetMapSize(SizeX, SizeZ);



		rmSetMapElevationParameters(cElevTurbulence, 0.15, 2.5, 0.35, 3.0); // type, frequency, octaves, persistence, variation

		rmSetMapElevationHeightBlend(1.0);


		//地形初始化，设定地图初始地形，调用上面用string定义MapTerrain，即为"Carolinas\ground_marsh3_car";
		rmTerrainInitialize(MapTerrain,6);



		//设定照明，调用上面用string定义MapLighting，即为"319a_Snow"
		rmSetLightingSet(MapLighting);



		rmSetGlobalRain(0.9);		//设定下雨
		chooseMercs();
		rmSetMapType("yucatan");
		rmSetMapType("water");
		rmSetMapType("default");	//设定地图类型，地图类型影响到宝藏
		rmSetMapType("land");
		rmSetMapType("bayou");
		rmSetSeaLevel(0); // this is height of river surface compared to surrounding land. River depth is in the river XML.

		rmSetStatusText("",0.01);//读取地图进度条

		//定义class
		int classStartingResource = rmDefineClass("startingResource");	//这个用作开局城镇资源
		int PlayerHerd2Class = rmDefineClass("PlayerHerd2C");		//这个用作玩家第二肉群
		int classGold = rmDefineClass("Gold");				//这个用作矿场


		//定义放置限制/规则【顺便说一句，如果存在两个相同限制/规则名称（不是说int后面那个，如果int出现两个相同你连地图都无法打开，我说的是带英文双引号那个""），只会执行第一个，另一个会失效，甚至会引发毁图效果】
		//定义avoidGold，并且设定距离Class“Gold”最小间隔距离为50
		int avoidGold = rmCreateClassDistanceConstraint ("avoid gold", rmClassID("Gold"), 50.0);

		//定义avoidPlayerHerd2Far，并且设定距离Class“PlayerHerd2C”最小间隔距离为50
		int avoidPlayerHerd2Far = rmCreateClassDistanceConstraint("avoid Player Herd2 far", rmClassID("PlayerHerd2C"), 52.0);

		//同理，不再解释。
		int avoidStartingResources = rmCreateClassDistanceConstraint("start resources avoid each other2", rmClassID("startingResource"), 4.0);




		rmPlacePlayersCircular(0.35, 0.35, 0.0);   	//圆形放置玩家


		//玩家范围
		float AreaSizePlayer = rmAreaTilesToFraction(700);
		for(i=1; <=cNumberNonGaiaPlayers)
		{
			int id=rmCreateArea("Player"+i);
			rmSetPlayerArea(i, id);
			rmSetAreaWarnFailure(id, false);
			rmSetAreaSize(id, AreaSizePlayer, AreaSizePlayer);
			rmSetAreaLocPlayer(id, i);
			rmSetAreaCoherence(id, 0.85);
			rmSetAreaSmoothDistance(id, 2);
			rmSetAreaMinBlobs(id, 1);
			rmSetAreaMaxBlobs(id, 1);
			rmSetAreaTerrainType(id,PlayerTerrain);
			rmBuildArea(id);
		}

		//定义城镇中心
		int TownCenterID = rmCreateObjectDef("player TC");
		if (rmGetNomadStart())
		{
			rmAddObjectDefItem(TownCenterID, "CoveredWagon", 1, 0.0);
		}
		else
		{
			rmAddObjectDefItem(TownCenterID, "TownCenter", 1, 0);
		}
		rmSetObjectDefMinDistance(TownCenterID, 0.0);
		rmSetObjectDefMaxDistance(TownCenterID, 20.0);
		for(i=1; <=cNumberNonGaiaPlayers)
		{
			rmPlaceObjectDefAtLoc(TownCenterID, i, rmPlayerLocXFraction(i), rmPlayerLocZFraction(i));
		}


		//定义起始单位（civs.xml定义那些开局单位）
		int startingUnits = rmCreateStartingUnitsObjectDef(5.0);
		rmSetObjectDefMinDistance(startingUnits, 6.0);
		rmSetObjectDefMaxDistance(startingUnits, 10.0);






		int playerherdID = rmCreateObjectDef("starting herd");
		rmAddObjectDefItem(playerherdID, "ypWildElephant", 10, 6.0);
		rmSetObjectDefMinDistance(playerherdID, 8.0);
		rmSetObjectDefMaxDistance(playerherdID, 12.0);
		rmSetObjectDefCreateHerd(playerherdID, true);

		//定义到到Class“startingResource”中，你往上搜索classStartingResource，我们有定义过的，当然你也可以直接在这里使用rmDefineClass("startingResource")
		rmAddObjectDefToClass(playerherdID, classStartingResource);

		//使用avoidStartingResources放置限制，也就是说距离Class“startingResource”最小间隔距离为4.
		rmAddObjectDefConstraint(playerherdID, avoidStartingResources);




		int playergoldID = rmCreateObjectDef("player mine");
		rmAddObjectDefItem(playergoldID, "Minegold", 1, 6);
		rmSetObjectDefMinDistance(playergoldID, 18.0);
		rmSetObjectDefMaxDistance(playergoldID, 22.0);
		rmAddObjectDefToClass(playergoldID, rmDefineClass("startingResource"));	//可以直接使用rmDefineClass("startingResource")
		rmAddObjectDefToClass(playergoldID, classGold);
		rmAddObjectDefConstraint(playergoldID, avoidStartingResources);

		string PlayerTreeType ="TreeRedwood";
		int PlayerTreeCount = 8;

		int playerTree1ID = rmCreateObjectDef("player trees");
		rmAddObjectDefItem(playerTree1ID, PlayerTreeType, PlayerTreeCount, 8.0);
		rmSetObjectDefMinDistance(playerTree1ID, 6);
		rmSetObjectDefMaxDistance(playerTree1ID, 12);
		rmAddObjectDefToClass(playerTree1ID, classStartingResource);
		rmAddObjectDefConstraint(playerTree1ID, avoidStartingResources);



		int playerBerryID=rmCreateObjectDef("player berries");
		rmAddObjectDefItem(playerBerryID, "BerryBush", rmRandInt(3,4), 3.0);
		rmSetObjectDefMinDistance(playerBerryID, 12);
		rmSetObjectDefMaxDistance(playerBerryID, 14);
		rmAddObjectDefToClass(playerBerryID, classStartingResource);
		rmAddObjectDefConstraint(playerBerryID, avoidStartingResources);


		int playerHerd2ID = rmCreateObjectDef("player Herd2");
		rmAddObjectDefItem(playerHerd2ID, "Bison", rmRandInt(10,11), 10.0);
		rmSetObjectDefMinDistance(playerHerd2ID, 36);
		rmSetObjectDefMaxDistance(playerHerd2ID, 38);
		rmSetObjectDefCreateHerd(playerHerd2ID, true);
		rmAddObjectDefToClass(playerHerd2ID, PlayerHerd2Class);




		int playerHerd3ID = rmCreateObjectDef("player Herd3");
		rmAddObjectDefItem(playerHerd3ID, "Turkey", rmRandInt(8,9), 8.0);
		rmSetObjectDefMinDistance(playerHerd3ID, 40);
		rmSetObjectDefMaxDistance(playerHerd3ID, 42);
		rmSetObjectDefCreateHerd(playerHerd3ID, true);
		rmAddObjectDefConstraint(playerHerd3ID, avoidPlayerHerd2Far);	//然后第三个肉群就会避开第二个肉群了



		int playergold2ID = rmCreateObjectDef("player second mine");
		rmAddObjectDefItem(playergold2ID, "mine", 1, 0);
		rmSetObjectDefMinDistance(playergold2ID, 58.0);
		rmSetObjectDefMaxDistance(playergold2ID, 62.0);
		rmAddObjectDefToClass(playergold2ID, classGold);
		rmAddObjectDefConstraint(playergold2ID, avoidGold);



		int playergold3ID = rmCreateObjectDef("player third mine");
		rmAddObjectDefItem(playergold3ID, "mine", 1, 0);
		rmSetObjectDefMinDistance(playergold3ID, 68.0);
		rmSetObjectDefMaxDistance(playergold3ID, 70.0);
		rmAddObjectDefToClass(playergold3ID, classGold);
		rmAddObjectDefConstraint(playergold3ID, avoidGold);



		for(i=1; <=cNumberNonGaiaPlayers)
		{
			vector TCLocation = rmGetUnitPosition(rmGetUnitPlacedOfPlayer(TownCenterID, i));
			rmPlaceObjectDefAtLoc(startingUnits, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));
			rmPlaceObjectDefAtLoc(playerherdID, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));
			rmPlaceObjectDefAtLoc(playerTree1ID, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));
			rmPlaceObjectDefAtLoc(playergoldID, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));
			rmPlaceObjectDefAtLoc(playerBerryID, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));

			rmPlaceObjectDefAtLoc(playerHerd2ID, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));
			rmPlaceObjectDefAtLoc(playerHerd3ID, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));
			rmPlaceObjectDefAtLoc(playergold2ID, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));
			rmPlaceObjectDefAtLoc(playergold3ID, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));

		}

		int FixedGunID = rmCreateObjectDef("FixedGun");
		rmAddObjectDefItem(FixedGunID, "SPCFixedGun",1,5.0);
		rmSetObjectDefMinDistance(FixedGunID,0.0);
		rmSetObjectDefMaxDistance(FixedGunID,30.0);
		rmPlaceObjectDefAtLoc(FixedGunID,0,0.50,0.50,1);




		rmSetStatusText("",0.50);//读取地图进度条





		rmSetStatusText("",1.00);//读取地图进度条


					//愿神兽会保佑你不会出错。
 			/*----------------------------------------------------------------------------------------------*
			* 　　　┏┓　　　┏┓										*
			* 　　┏┛┻━━━┛┻┓									*
			* 　　┃　　　　　　　┃									*
			* 　　┃　　　━　　　┃									*
			* 　　┃　┳┛　┗┳　┃									*
			* 　　┃　　　　　　　┃									*
			* 　　┃　　　┻　　　┃									*
			* 　　┃　　　　　　　┃									*
			* 　　┗━┓　　　┏━┛     Code is far away from bug with the animal protecting		*
			* 　　　　┃　　　┃    									*
			* 　　　　┃　　　┃										*
			* 　　　　┃　　　┃										*
			* 　　　　┃　　　┃										*
			* 　　　　┃　　　┃										*
			* 　　　　┃　　　┗━━━┓									*
			* 　　　　┃　　　　　　　┣┓									*
			* 　　　　┃　　　　　　　┏┛									*
			* 　　　　┗┓┓┏━┳┓┏┛									*
			* 　　　　　┃┫┫　┃┫┫									*
			* 　　　　　┗┻┛　┗┻┛									*
			*----------------------------------------------------------------------------------------------*/
	} //END





使用的放置限制只有几个，不过效果也差不多了，如果你真的想做一幅较好的地图，自己用心去多设定几个放置限制。


最后来设定以中心点放置的资源吧：这次我不使用class了，直接用单位标签就行
定义限制传送门     中心点创建资源传送门
  Debug.xs - 记事本 ____ □ X
文件(F)  编辑(E)  格式(O)  查看(V)  帮助(H)

	include "mercenaries.xs";
	include "ypAsianInclude.xs";
	include "ypKOTHInclude.xs";

	void main(void)
	{
		// ---------------------------------------- Map Info -------------------------------------------
		int playerTilesX=13200;			//设定地图X大小
		int playerTilesZ=13200;			//设定地图Z大小（帝国3的Y是高度，Z才是我们平常所用到的Y）


		//如果玩家大于4将playerTilesX与playerTilesZ改为11500（同一个值的int只能出现1次，当你需要修改数值的时候，不能再加入int）
		if (cNumberNonGaiaPlayers >4){	playerTilesX=11500;	playerTilesZ=11500;}



		if (cNumberNonGaiaPlayers >6){	playerTilesX=10500;	playerTilesZ=10500;}		//Modify Map X&Z Size of 6,7,8 Player



		int SizeX = 2*sqrt(cNumberNonGaiaPlayers*playerTilesX);
		int SizeZ = 2*sqrt(cNumberNonGaiaPlayers*playerTilesZ);



		string MapTerrain ="Carolinas\ground_marsh3_car";	//<-------- 地图地形，自己参照剧情编辑器 <--------

		string MapLighting ="319a_Snow";			//<-------- 照明，自己参照剧情编辑器 <--------

		string PlayerTerrain ="Carolinas\ground_marsh1_car";	//<--------- 玩家范围地形 <---------




		//设定地图XZ大小,分别调用上面用int定义的SizeX与SizeZ，即为rmSetMapSize(13200,13200);如果玩家大于4将改为11500
		rmSetMapSize(SizeX, SizeZ);



		rmSetMapElevationParameters(cElevTurbulence, 0.15, 2.5, 0.35, 3.0); // type, frequency, octaves, persistence, variation

		rmSetMapElevationHeightBlend(1.0);


		//地形初始化，设定地图初始地形，调用上面用string定义MapTerrain，即为"Carolinas\ground_marsh3_car";
		rmTerrainInitialize(MapTerrain,6);



		//设定照明，调用上面用string定义MapLighting，即为"319a_Snow"
		rmSetLightingSet(MapLighting);



		rmSetGlobalRain(0.9);		//设定下雨
		chooseMercs();
		rmSetMapType("yucatan");
		rmSetMapType("water");
		rmSetMapType("default");	//设定地图类型，地图类型影响到宝藏
		rmSetMapType("land");
		rmSetMapType("bayou");
		rmSetSeaLevel(0); // this is height of river surface compared to surrounding land. River depth is in the river XML.

		rmSetStatusText("",0.01);//读取地图进度条

		//定义class
		int classStartingResource = rmDefineClass("startingResource");	//这个用作开局城镇资源
		int PlayerHerd2Class = rmDefineClass("PlayerHerd2C");		//这个用作玩家第二肉群
		int classGold = rmDefineClass("Gold");				//这个用作矿场


		//定义放置限制/规则【顺便说一句，如果存在两个相同限制/规则名称（不是说int后面那个，如果int出现两个相同你连地图都无法打开，我说的是带英文双引号那个""），只会执行第一个，另一个会失效，甚至会引发毁图效果】

		int avoidGold = rmCreateClassDistanceConstraint ("avoid gold", rmClassID("Gold"), 50.0);
		int avoidPlayerHerd2Far = rmCreateClassDistanceConstraint("avoid Player Herd2 far", rmClassID("PlayerHerd2C"), 52.0);
		int avoidStartingResources = rmCreateClassDistanceConstraint("start resources avoid each other2", rmClassID("startingResource"), 4.0);


		//与所有带有gold标签的单位最小间隔距离为45
		int avoidGoldTypeFar = rmCreateTypeDistanceConstraint("coin avoids coin far ", "gold", 45.0);

		//与所有带有herd标签的单位最小间隔距离为45
		int avoidHerdTypeFar = rmCreateTypeDistanceConstraint("herd avoids herd far", "herd", 45.0);

		//与所有带有Tree标签的单位最小间隔距离为25
		int avoidTreeType = rmCreateTypeDistanceConstraint("Tree avoids Tree  ", "Tree", 25.0);



		rmPlacePlayersCircular(0.35, 0.35, 0.0);   	//圆形放置玩家


		//玩家范围
		float AreaSizePlayer = rmAreaTilesToFraction(700);
		for(i=1; <=cNumberNonGaiaPlayers)
		{
			int id=rmCreateArea("Player"+i);
			rmSetPlayerArea(i, id);
			rmSetAreaWarnFailure(id, false);
			rmSetAreaSize(id, AreaSizePlayer, AreaSizePlayer);
			rmSetAreaLocPlayer(id, i);
			rmSetAreaCoherence(id, 0.85);
			rmSetAreaSmoothDistance(id, 2);
			rmSetAreaMinBlobs(id, 1);
			rmSetAreaMaxBlobs(id, 1);
			rmSetAreaTerrainType(id,PlayerTerrain);
			rmBuildArea(id);
		}

		//定义城镇中心
		int TownCenterID = rmCreateObjectDef("player TC");
		if (rmGetNomadStart())
		{
			rmAddObjectDefItem(TownCenterID, "CoveredWagon", 1, 0.0);
		}
		else
		{
			rmAddObjectDefItem(TownCenterID, "TownCenter", 1, 0);
		}
		rmSetObjectDefMinDistance(TownCenterID, 0.0);
		rmSetObjectDefMaxDistance(TownCenterID, 20.0);
		for(i=1; <=cNumberNonGaiaPlayers)
		{
			rmPlaceObjectDefAtLoc(TownCenterID, i, rmPlayerLocXFraction(i), rmPlayerLocZFraction(i));
		}


		//定义起始单位（civs.xml定义那些开局单位）
		int startingUnits = rmCreateStartingUnitsObjectDef(5.0);
		rmSetObjectDefMinDistance(startingUnits, 6.0);
		rmSetObjectDefMaxDistance(startingUnits, 10.0);



		int playerherdID = rmCreateObjectDef("starting herd");
		rmAddObjectDefItem(playerherdID, "ypWildElephant", 10, 6.0);
		rmSetObjectDefMinDistance(playerherdID, 8.0);
		rmSetObjectDefMaxDistance(playerherdID, 12.0);
		rmSetObjectDefCreateHerd(playerherdID, true);
		rmAddObjectDefToClass(playerherdID, classStartingResource);
		rmAddObjectDefConstraint(playerherdID, avoidStartingResources);




		int playergoldID = rmCreateObjectDef("player mine");
		rmAddObjectDefItem(playergoldID, "Minegold", 1, 6);
		rmSetObjectDefMinDistance(playergoldID, 18.0);
		rmSetObjectDefMaxDistance(playergoldID, 22.0);
		rmAddObjectDefToClass(playergoldID, rmDefineClass("startingResource"));
		rmAddObjectDefToClass(playergoldID, classGold);
		rmAddObjectDefConstraint(playergoldID, avoidStartingResources);

		string PlayerTreeType ="TreeRedwood";
		int PlayerTreeCount = 8;

		int playerTree1ID = rmCreateObjectDef("player trees");
		rmAddObjectDefItem(playerTree1ID, PlayerTreeType, PlayerTreeCount, 8.0);
		rmSetObjectDefMinDistance(playerTree1ID, 6);
		rmSetObjectDefMaxDistance(playerTree1ID, 12);
		rmAddObjectDefToClass(playerTree1ID, classStartingResource);
		rmAddObjectDefConstraint(playerTree1ID, avoidStartingResources);



		int playerBerryID=rmCreateObjectDef("player berries");
		rmAddObjectDefItem(playerBerryID, "BerryBush", rmRandInt(3,4), 3.0);
		rmSetObjectDefMinDistance(playerBerryID, 12);
		rmSetObjectDefMaxDistance(playerBerryID, 14);
		rmAddObjectDefToClass(playerBerryID, classStartingResource);
		rmAddObjectDefConstraint(playerBerryID, avoidStartingResources);


		int playerHerd2ID = rmCreateObjectDef("player Herd2");
		rmAddObjectDefItem(playerHerd2ID, "Bison", rmRandInt(10,11), 10.0);
		rmSetObjectDefMinDistance(playerHerd2ID, 36);
		rmSetObjectDefMaxDistance(playerHerd2ID, 38);
		rmSetObjectDefCreateHerd(playerHerd2ID, true);
		rmAddObjectDefToClass(playerHerd2ID, PlayerHerd2Class);




		int playerHerd3ID = rmCreateObjectDef("player Herd3");
		rmAddObjectDefItem(playerHerd3ID, "Turkey", rmRandInt(8,9), 8.0);
		rmSetObjectDefMinDistance(playerHerd3ID, 40);
		rmSetObjectDefMaxDistance(playerHerd3ID, 42);
		rmSetObjectDefCreateHerd(playerHerd3ID, true);
		rmAddObjectDefConstraint(playerHerd3ID, avoidPlayerHerd2Far);



		int playergold2ID = rmCreateObjectDef("player second mine");
		rmAddObjectDefItem(playergold2ID, "mine", 1, 0);
		rmSetObjectDefMinDistance(playergold2ID, 58.0);
		rmSetObjectDefMaxDistance(playergold2ID, 62.0);
		rmAddObjectDefToClass(playergold2ID, classGold);
		rmAddObjectDefConstraint(playergold2ID, avoidGold);



		int playergold3ID = rmCreateObjectDef("player third mine");
		rmAddObjectDefItem(playergold3ID, "mine", 1, 0);
		rmSetObjectDefMinDistance(playergold3ID, 68.0);
		rmSetObjectDefMaxDistance(playergold3ID, 70.0);
		rmAddObjectDefToClass(playergold3ID, classGold);
		rmAddObjectDefConstraint(playergold3ID, avoidGold);

		for(i=1; <=cNumberNonGaiaPlayers)
		{
			vector TCLocation = rmGetUnitPosition(rmGetUnitPlacedOfPlayer(TownCenterID, i));
			rmPlaceObjectDefAtLoc(startingUnits, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));
			rmPlaceObjectDefAtLoc(playerherdID, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));
			rmPlaceObjectDefAtLoc(playerTree1ID, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));
			rmPlaceObjectDefAtLoc(playergoldID, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));
			rmPlaceObjectDefAtLoc(playerBerryID, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));

			rmPlaceObjectDefAtLoc(playerHerd2ID, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));
			rmPlaceObjectDefAtLoc(playerHerd3ID, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));
			rmPlaceObjectDefAtLoc(playergold2ID, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));
			rmPlaceObjectDefAtLoc(playergold3ID, i, rmXMetersToFraction(xsVectorGetX(TCLocation)), rmZMetersToFraction(xsVectorGetZ(TCLocation)));

		}

		int FixedGunID = rmCreateObjectDef("FixedGun");
		rmAddObjectDefItem(FixedGunID, "SPCFixedGun",1,5.0);
		rmSetObjectDefMinDistance(FixedGunID,0.0);
		rmSetObjectDefMaxDistance(FixedGunID,30.0);
		rmPlaceObjectDefAtLoc(FixedGunID,0,0.50,0.50,1);









		//列举三种创建多组单位方式




		//第一种：通过使用for循环全部语句创建多组单位，此方法执行效率最低，应尽量少用


		for(i=0; <= cNumberNonGaiaPlayers*3)
		{
			int goldID = rmCreateObjectDef("gold"+i);	//由于不能出现相同的名称，所以for循环给名称加上循环值很重要，不然会导致只会生成一组单位。
			rmAddObjectDefItem(goldID, "mine", 1, 0.0);
			rmSetObjectDefMinDistance(goldID, rmXFractionToMeters(0.0));
			//这里设定最大距离为rmXFractionToMeters(0.5)，(从中心点0.5,0.5算起）即为全图
			rmSetObjectDefMaxDistance(goldID, rmXFractionToMeters(0.5));
			rmAddObjectDefToClass(goldID, classGold);
			rmAddObjectDefConstraint(goldID, avoidGoldTypeFar);	//矿场与矿场之间间隔45
			rmPlaceObjectDefAtLoc(goldID, 0, 0.50, 0.50);		//最后面没有设定数量，默认为1组
		}

		//假设cNumberNonGaiaPlayers=2，求最后循环的数量？
		//你的回答是？	6？	7？
		//正确答案是7，因为这里是i=0;所以本身就包括0，然后是1、2、3、4、5、6；合计等于7




		//第二种：通过使用for循环最后一句“放置单位”来创建多组单位

		int CenterHerdID = rmCreateObjectDef("Center Herd2");
		rmAddObjectDefItem(CenterHerdID, "BighornSheep",10, 8.0);
		rmSetObjectDefMinDistance(CenterHerdID, rmXFractionToMeters(0.0));
		rmSetObjectDefMaxDistance(CenterHerdID, rmXFractionToMeters(0.45));
		rmSetObjectDefCreateHerd(CenterHerdID, true);
		rmAddObjectDefConstraint(CenterHerdID, avoidHerdTypeFar);	//猎物与猎物间隔45


		for(i=1; <= cNumberNonGaiaPlayers*3)
		{
		rmPlaceObjectDefAtLoc(CenterHerdID, 0, 0.50, 0.50);		//只循环这一句，无需加循环值
		}


		//假设cNumberNonGaiaPlayers=2，求最后循环的数量？
		//你的回答是？	6？	7？
		//正确答案是6，因为这里是i=1;每次循环+1，第一次循环为1，最终结果是1、2、3、4、5、6




		//第三种，直接在最后一句“放置单位”那里设定多组

			int GreenForestTreeObjectID = rmCreateObjectDef("Object Green forest trees");
			rmAddObjectDefItem(GreenForestTreeObjectID, "TreeRedwood", 8, 15);
			rmAddObjectDefItem(GreenForestTreeObjectID, "TreeRedwood", 3, 5);
			rmAddObjectDefItem(GreenForestTreeObjectID, "UnderbrushCalifornia", 3, 10);
			rmSetObjectDefMinDistance(GreenForestTreeObjectID,  rmXFractionToMeters(0.0));
			rmSetObjectDefMaxDistance(GreenForestTreeObjectID,  rmXFractionToMeters(0.47));
			rmAddObjectDefConstraint(GreenForestTreeObjectID, avoidTreeType);		//树木与树木间隔25
			rmPlaceObjectDefAtLoc(GreenForestTreeObjectID, 0, 0.50, 0.50, cNumberNonGaiaPlayers*20);

		rmSetStatusText("",0.50);//读取地图进度条





		rmSetStatusText("",1.00);//读取地图进度条


					//愿神兽会保佑你不会出错。
 			/*----------------------------------------------------------------------------------------------*
			* 　　　┏┓　　　┏┓										*
			* 　　┏┛┻━━━┛┻┓									*
			* 　　┃　　　　　　　┃									*
			* 　　┃　　　━　　　┃									*
			* 　　┃　┳┛　┗┳　┃									*
			* 　　┃　　　　　　　┃									*
			* 　　┃　　　┻　　　┃									*
			* 　　┃　　　　　　　┃									*
			* 　　┗━┓　　　┏━┛     Code is far away from bug with the animal protecting		*
			* 　　　　┃　　　┃    									*
			* 　　　　┃　　　┃										*
			* 　　　　┃　　　┃										*
			* 　　　　┃　　　┃										*
			* 　　　　┃　　　┃										*
			* 　　　　┃　　　┗━━━┓									*
			* 　　　　┃　　　　　　　┣┓									*
			* 　　　　┃　　　　　　　┏┛									*
			* 　　　　┗┓┓┏━┳┓┏┛									*
			* 　　　　　┃┫┫　┃┫┫									*
			* 　　　　　┗┻┛　┗┻┛									*
			*----------------------------------------------------------------------------------------------*/
	} //END

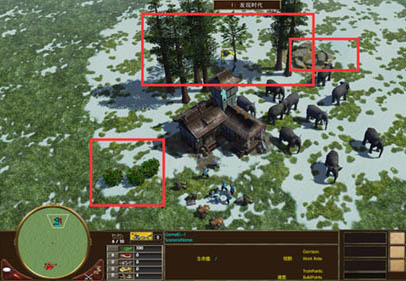

最后的效果还不是很好，这是地图因为有点大，资源群组数太少、资源间隔限制太小，如果你真的像做一幅好一点的地图，就用心去多设定十几条条放置限制，合理调整资源发布。



本次教程结束。
