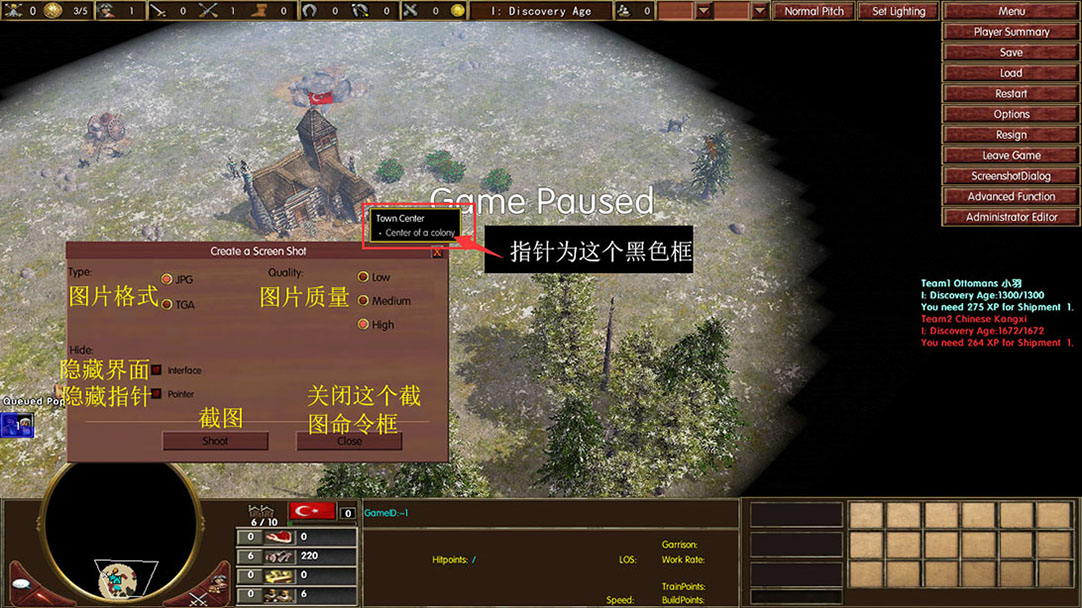

截图命令框

这个命令框可以调截图的质量与选择是否隐藏界面、指针。其实我是在剧情编辑器那个UI移植过来的。


这个命令框自己调出来，我只提供截图命令框的语句。（建议添加在uimainnew.xml）
		<gadget name="ScreenshotDialog" type="gadget" size1024="337 200 700 480" background="ui\editor\editor_background" bevel="" titlebar="$$20374$ a Screenshot" closebutton="" hidden="" windowzstyle="" moveable="">
		<gadget name="ScreenshotTypeText" type="textBox" textfont="Arial nodrop" textfontsize="12" textcolor="0 0 0" size1024="337 228 418 248">$$20347$:</gadget>
		<gadget name="ScreenshotTypeRadioButtons" type="radioset" background="ui\editor\editor_background" radiosetbuttonsize1024="100 25" size1024="420 223 520 303">
			<button command="configDef(&quot;jpegScreenshots&quot;)">$$20536$</button>
			<button command="configUndef(&quot;jpegScreenshots&quot;)">$$20537$</button>
		</gadget>
		<gadget name="ScreenshotQualityText" type="textBox" textfont="Arial nodrop" textfontsize="12" textcolor="0 0 0" size1024="527 229 604 249">$$20375$:</gadget>
		<gadget name="ScreenshotQualityRadioButtons" type="radioset" background="ui\editor\editor_background" radiosetbuttonsize1024="100 25" radiosetdefaultbuttonindex="2" size1024="606 222 686 322">
			<button command="configSetInt(&quot;jpegScreenshotQuality&quot;, 25)">$$18579$</button>
			<button command="configSetInt(&quot;jpegScreenshotQuality&quot;, 50)">$$18846$</button>
			<button command="configSetInt(&quot;jpegScreenshotQuality&quot;, 100)">$$18578$</button>
		</gadget>
		<gadget name="ScreenshotIncludeText" type="textBox" textfont="Arial nodrop" textfontsize="12" textcolor="0 0 0" size1024="339 327 531 347">$$20376$:</gadget>
		<gadget name="ScreenshotIncludeInterface" type="checkButton" textfont="Arial nobold nodrop" textfontsize="12" textcolor="0 0 0" configindex="screenShotHideUI" size1024="412 352 587 372">$$20377$</gadget>
		<gadget name="ScreenshotIncludeCursor" type="checkButton" textfont="Arial nobold nodrop" textfontsize="12" textcolor="0 0 0" configindex="screenShotHideCursor" size1024="412 382 587 402">$$20378$</gadget>
		<gadget name="ScreenshotSeparator" type="gadget" background="UI\editor\menu_separator" size1024="347 422 690 432"/>
		<gadget name="ScreenshotTakeButton" type="button" bevelbutton="" textfont="Arial nodrop" textfontsize="12" size1024="428 439 529 464">
			$$20379$
			<command>gadgetUnReal("ScreenshotDialog") screenshot() gadgetReal("ScreenshotDialog")</command>
		</gadget>
		<gadget name="ScreenshotCloseButton" type="button" bevelbutton="" textfont="Arial nodrop" textfontsize="12" size1024="555 439 656 464">
			$$18457$
			<command>gadgetUnReal("ScreenshotDialog")</command>
		</gadget>
	</gadget>



另外还可以这样做（要稍微修改一下语句，在uipregamenew.xml添加）：


uipregamenew.xml的语句：

	<gadget name="ScreenshotDialog" type="gadget" size1024="337 200 700 480" background="ui\editor\editor_background" bevel="" titlebar="$$20374$ a Screenshot" closebutton="" hidden="" windowzstyle="" moveable="">
		<gadget name="ScreenshotTypeText" type="textBox" textfont="Arial nodrop" textfontsize="12" textcolor="0 0 0" size1024="337 228 418 248">$$20347$:</gadget>
		<gadget name="ScreenshotTypeRadioButtons" type="radioset" background="ui\editor\editor_background" radiosetbuttonsize1024="100 25" size1024="420 223 520 303">
			<button command="configDef(&quot;jpegScreenshots&quot;)">$$20536$</button>
			<button command="configUndef(&quot;jpegScreenshots&quot;)">$$20537$</button>
		</gadget>
		<gadget name="ScreenshotQualityText" type="textBox" textfont="Arial nodrop" textfontsize="12" textcolor="0 0 0" size1024="527 229 604 249">$$20375$:</gadget>
		<gadget name="ScreenshotQualityRadioButtons" type="radioset" background="ui\editor\editor_background" radiosetbuttonsize1024="100 25" radiosetdefaultbuttonindex="2" size1024="606 222 686 322">
			<button command="configSetInt(&quot;jpegScreenshotQuality&quot;, 25)">$$18579$</button>
			<button command="configSetInt(&quot;jpegScreenshotQuality&quot;, 50)">$$18846$</button>
			<button command="configSetInt(&quot;jpegScreenshotQuality&quot;, 100)">$$18578$</button>
		</gadget>
		<gadget name="ScreenshotIncludeText" type="textBox" textfont="Arial nodrop" textfontsize="12" textcolor="0 0 0" size1024="339 327 531 347">$$20376$:</gadget>
		<gadget name="ScreenshotIncludeInterface" type="checkButton" textfont="Arial nobold nodrop" textfontsize="12" textcolor="0 0 0" configindex="screenShotHideUI" size1024="412 352 587 372">$$20377$</gadget>
		<gadget name="ScreenshotIncludeCursor" type="checkButton" textfont="Arial nobold nodrop" textfontsize="12" textcolor="0 0 0" configindex="screenShotHideCursor" size1024="412 382 587 402">$$20378$</gadget>
		<gadget name="ScreenshotSeparator" type="gadget" background="UI\editor\menu_separator" size1024="347 422 690 432"/>
		<gadget name="ScreenshotTakeButton" type="button" bevelbutton="" textfont="Arial nodrop" textfontsize="12" size1024="428 439 529 464">
			$$20379$
			<command>gadgetUnReal("ScreenshotDialog") gadgetUnReal("MainMenuOptions") gadgetUnReal("BackgroundMainButtons") gadgetUnReal("HelpAndToolsSubMenu") screenshot() gadgetReal("BackgroundMainButtons") gadgetReal("MainMenuOptions") gadgetReal("HelpAndToolsSubMenu")</command>
		</gadget>
		<gadget name="ScreenshotCloseButton" type="button" bevelbutton="" textfont="Arial nodrop" textfontsize="12" size1024="555 439 656 464">
			$$18457$
			<command>gadgetUnReal("ScreenshotDialog")</command>
		</gadget>
	</gadget>
